Tube Fiber Laser Cutting Machine FT6020Pro

Professional tube fiber laser cutting machine—FT6020Pro is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube 20 * 20, 150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube. Tube fiber laser cutting machine FT6020Pro adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm. FT6020Pro machine employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation. It adopts intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

→

Tube Fiber Laser Cutting Machine FT6020+Pro

FT6020+Pro professional tube fiber laser cutting machine is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube 20 * 20-150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube. Auto focus Laser cutting head without manual focusing, automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time. It adopts a pneumatic clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-300mm.

→

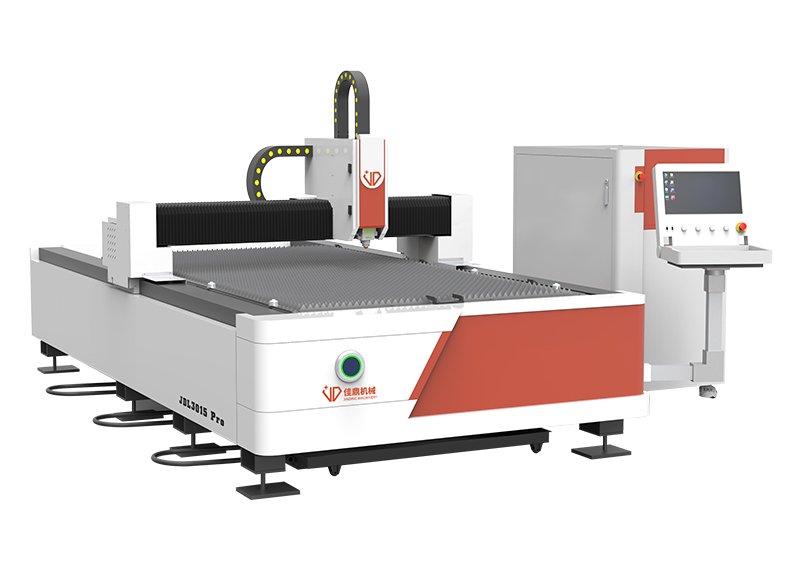

Sheet Fiber Laser Cutting Machine FS3015 Pro

FS3015 fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless-steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
FS3015 fiber laser cutting machines use Q235 steel as the welding motherboard, to ensure the stability and deformation of the bed.
Heavy bed construction, ensuring the stability of the machine tool for long term application.
Horizontal accuracy of integral welding platform is ≤0.5mm, so the welding precision of the bed is guaranteed, overall welding accuracy ≤5mm. Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations. The display operation unit provides good man-machine interface to display various operation information, and the operation panel with function keys for machine operation.

→

JDL3015 Fiber Laser Cutting Machine

JDL3015 fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless-steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life. Use Q235 steel as the welding motherboard, to ensure the stability and deformation of the bed. Heavy bed construction, ensuring the stability of the machine tool for long term application. Horizontal accuracy of integral welding platform is ≤0.5mm, so the welding precision of the bed is guaranteed, overall welding accuracy ≤5mm. Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations. The display operation unit provides good man-machine interface to display various operation information, and the operation panel with function keys for machine operation.

→

Fiber Laser Welding Machine JDHW20Pro

JDHW20Pro fiber laser welding machine application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc. Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. It can be configured with a variety of Angle nozzle to meet the welding needs of different products. Fast welding speed, 2~10 times faster than traditional welding. Easy operating no needs training Welding seam beautiful smooth and beautiful, don’t need polish, save your time. No deformation or welding scar, firm welding of the workpiece. Laser welding has less consumables and long service life. Safer, more environmentally friendly.

→

JDW500 500W Laser Welding Machine

JDW500 500W YAG laser welding machine have small welding spot, joint firmness for metal word connection, widely used in signage making, metal word production and advertising display production company. Red light fast positioning, CCD display, microscope optional. Adjustable working table allows welding from small size to big size of work piece. Fast working speed. Capable of partial heating process. Able to deal with complex, profiled, or tiny letters. Low noise and no pollution. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position

→

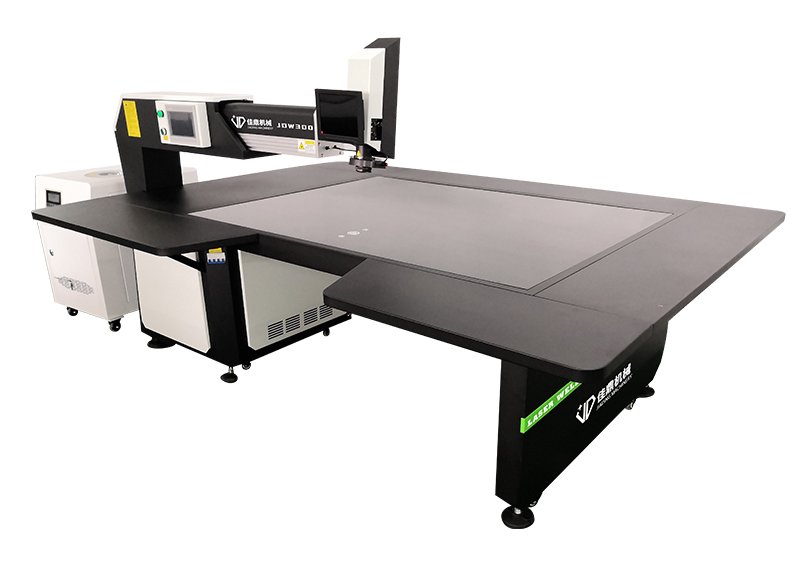

JDW300 300W Laser Welding Machine

JDW300 300W YAG laser welding machine have small welding spot, joint firmness for metal word connection, widely used in signage making, metal word production and advertising display production company. Red light fast positioning, CCD display, microscope optional. Adjustable working table allows welding from small size to big size of work piece. Fast working speed. Capable of partial heating process. Able to deal with complex, profiled, or tiny letters. Low noise and no pollution. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position

→

YT46C Cross Table Die Board Laser Cutting Machine

Cross table structure, stable cutting, small floor space required for machine. Adopt domestic advanced CO2 sealing type water-cooled laser tube, combined with good precision of CNC control mechanical system. Suitable for wooden cutting die and precision electronic cutting die production. Using split type fixed optical path structure, to avoid the high-power cutting size problem because of the optical path deviation. Unique smoke exhausts design; create a good working environment for worker. Only 220 v external power source is needed and making low cost. There is no need to wait long time for start and running the machine. Can cut 15mm-23mm plywood, PVC board, organic glass. The cutting line width can be 0.45 mm,0.71 mm,1.05 mm,1.42 mm etc. Simple and clear-cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw, Adobe Photoshop. Editing path is very easy and convenient.

→

YTX Rotary And Flat Plywood Laser Cutting Machine

The YTX rotary flat plywood laser cutting machine equipped with CAD/CAM dedicated automatic programming software, which is to facilitate the production of graphics, programming and maximize the conservation of raw materials, and special cutting process features. The YTX rotary flat plywood laser cutting machine uses fully-enclosed cover, the effect of removing smoke is very good. The YTX rotary flat plywood laser cutting machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life. The three cutting gases are free to choose. The entire system uses high pressure gas line design, when cut stainless steel plate. Stainless steel plate cover, can bear at least two weighted 80kg men standing on it, no deformation. Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature deformation. Quick marking function is optional. Drilling router function is optional.

→

YT83 Rotary Die Board Laser Cutting Machine

The rotary die board laser cutting machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions. Anti-collision system to protect the rotary die board laser head from being damaged. Auto compensation system for rotary laser to adjust the tolerance when the rotary die board is tiny twisted. The rotary die board laser cutting machine equipped with CAD/CAM dedicated automatic programming software. The machine uses upper and lower regional dust removal system at the same time. The machine uses fully-enclosed cover, the effect of removing smoke is very good. The rotary die board laser cutting machine with enclosed optical path, which can ensure the lens life. Stainless steel plate cover, can bear at least two weighted 80 kg men standing on it, no deformation. Eccentric shaft of rotary bed, scientific protection of the axis to avoid high temperature defo

→

YT48 Flat Die Board Laser Cutting Machine

PA laser dedicated CNC system, laser and machine control system into one. The flat die board laser cutting machine is equipped with CAD/CAM dedicated automatic programming software. The YT48 flat die board laser cutting machine uses fully-enclosed cover, the effect of removing smoke is very good,100% no smoke left in the workshop when cutting. The YT48 machine with enclosed optical path, use positive pressure to remove the dust, which can ensure the lens life. Stainless steel plate cover, can bear at least two weighted 80 kg men standing on it, no deformation. Quick marking function is optional. New laser head design with anti-collision system, two separated pressing feet with balls on the bottom, make sure moving smoothly. Gantry type machine can individually adjust 45,90,135 and whole X direction cutting kerf tightness.X,Y,Z axis individually control. Auto oiling system. Cutting path display. High energy savings: one bottle Helium gas can be used for 300 hours.

→

JDL1309 Co2 Laser Marking Machine

→
